Four Insect-borne Malaria / Borrelia burgdorferi/Zika/Dengue
Multiple Fluorescent PCR probe kit
Intended use:
This product is used for in vitro qualitative detection of
Malaria/Borrelia burgdorferi/Zika/Dengue virus nucleic acid in
human serum samples. The test results are for clinical reference
only, it cannot be used alone as the basis for the diagnosis or
exclusion of cases.
Test Principle:
The kit adopt TaqMan fluorescent probe method. For the highly
conserved and specific region of Malaria/Borrelia burgdorferi
/Zika/Dengue, the primer probes, together with RT-PCR reaction
solution for fluorescent detection are designed and labeled with
different fluorescent groups. On the fluorescence quantitative PCR
instrument, the real-time fluorescence quantitative PCR detection
technology is used to realize the rapid detection of
Malaria/Borrelia burgdorferi/Zika /Dengue through the change of
fluorescent signal. The detection system contains positive internal
control, used to monitor whether the nucleic acid extraction
process is normal.
Product components:
1
BIK-QL-H009:
| No. | Components | Amount |
| 1 | PCR Enzyme Mix (Lyophilized) | 96 tests/bottle |
| 2 | Primer-Probe Mix 1( Malaria ) | 50 μL/vial |
| 3 | Primer-Probe Mix 2(Borrelia burgdorferi / Zika / Dengue) | 50 μL/vial |
| 4 | Enzyme Mix Buffer (5×) | 400 μL/vial |
| 5 | Positive Control | 100 μL/tube |
| 6 | Negative Control | 100 μL/tube |
| 7 | RNase-free water | 1mL/tube |
| 8 | Paraffin oil | 1.5mL/tube*2 |
2 BIK-QL-H009S:
| No. | Components | Amount |
| 1 | 1 (Malaria Mix (Lyophilized)) | 24 tests/kit |
| 2 | 2 (Borrelia burgdorferi/ Zika / Dengue Mix (Lyophilized)) | 24 tests/kit |
| 3 | Positive Control | 100 μL/tube |
| 4 | Negative Control | 100 μL/tube |
| 5 | RNase-free water | 1mL/tube |
| 6 | Paraffin oil | 1.5mL/tube |
Note: Do not mix the components from different batches for detection. The Positive Control of Malaria/Borrelia burgdorferi/Zika/Dengue and internal control were constructed artificially, and they were not infectious.

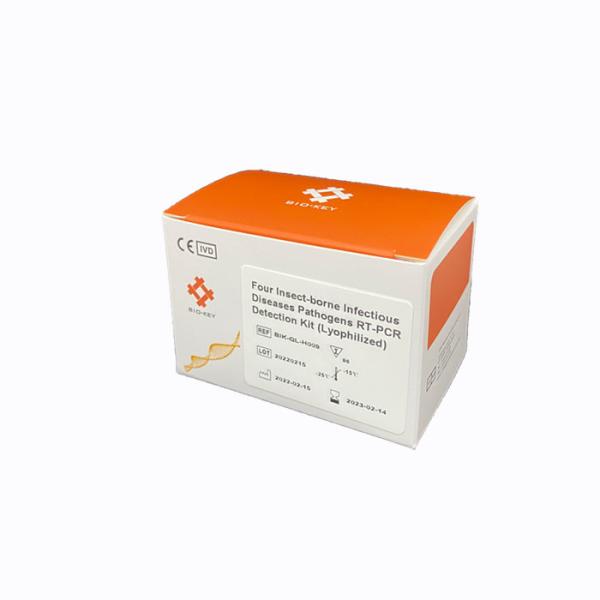

Product picture:
Compatible instruments:
The diagnostic kit is applicable to PCR instrument with multi-color
fluorescence channel FAM , VIC/HEX, ROX and CY5 including Quant
Studio5 (ABI), Micgene 244/244 IVD(BIO-KEY).
Reaction Mix Preparation:
Borrelia burgdorferi / Zika and Dengue reaction mix:
| 1×volume required |
| Resuspended master mix | 14 μL |
| Primer-Probe Mix 2 | 1 μL |
| Total volume | 15 μL |
※Multiply the numbers according to the number of tests.
PCR amplification condition:
| Step | Cycle | Temperature | Time |
| 1 | 1 | 50℃ | 10 min |
| 2 | 1 | 94℃ | 3 min |
3 |
40 | 94℃ | 10 s |
| 60℃ | 30 s(Collection of fluorescence) |
Interpretation of test results:
Borrelia burgdorferi/Zika/Denguee reaction:
| FAM
(Borrelia burgdorferi) | VIC/HEX (Zika) | ROX
(Dengue) | CY5
(IC) | Interpretation test results |
| 1 | - | - | - | - | Result invalid, test again |
| 2 | + | - | - | +/- | Borrelia burgdorferi(+) |
| 3 | - | + | - | +/- | Zika(+) |
| 4 | - | - | + | +/- | Dengue(+) |
| 5 | + | + | - | +/- | Borrelia burgdorferi,Zika(+) |
| 6 | + | - | + | +/- | Borrelia burgdorferi, Dengue(+) |
| 7 | - | + | + | +/- | Zika, Dengue(+) |
| | | | | Borrelia |
| | | | | burgdorferi, |
| 8 | + | + | + | +/- | Zika, |
| | | | | Dengue(+) |
| 9 | - | - | - | + | Negative(-) |
NOTE: ‘+ ’ is positive, ‘- ’ is negative.
Operation details please check from IFU
